With a compact, slim design and the patented ACrS technology, these wear-resistant, portable dewatering pumps provide reliable and economical solutions.
| Technical Specifications Pump Type: | Electrical Submersible Pumps, One-phase Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 2 Pole, Class F |
| Motor Protector : | Circle Thermal Protector, One- phase Capacitor-Run, Three-phase D.O.L |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Opened |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07BQ-F, 10m (33′) or longer upon request. |
| Materials: | Pump Casing-Gray Iron, Impeller-Chromium Iron, Motor Frame-Stainless Steel, Motor Shaft-Stainless Steel, Strainer-Stainless Steel |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge Outlet | 2″-Tank215, 3″-Tank315 | 2″-Tank215, 3″-Tank315 |
| Shaft Speed [r.p.m.] | 2850-Tank215, 2850-Tank315 | 3450-Tank215, 2850-Tank315 |
| Rated Output [KW] | 1.5-Tank215, 1.5-Tank315 | 1.5-Tank215, 1.5-Tank315 |
| Rated Head [m] | 14-Tank215, 8-Tank315 | 14-Tank215, 8-Tank315 |
| Rated Flow [L/s] | 4.2-Tank215, 8.3-Tank315 | 4.2-Tank215, 8.3-Tank315 |
| Max Head [m] | 20-Tank215, 14.5-Tank315 | 21-Tank215, 16-Tank315 |
| Max Flow [L/s] | 6.7-Tank215, 11.2-Tank315 | 6.7-Tank215, 10.3-Tank315 |
| Solids passage [mm] | 9-Tank215, 9-Tank315 | 9-Tank215, 9-Tank315 |
| Diameter [mm] | 253-Tank215, 267-Tank315 | 253-Tank215, 267-Tank315 |
| Height [mm] | 568-Gocut337, 568-Gocut437 | 568-Gocut337, 568-Gocut437 |
| Weight [kg] | 33-Gocut337, 33-Gocut437 | 33-Gocut337, 33-Gocut437 |

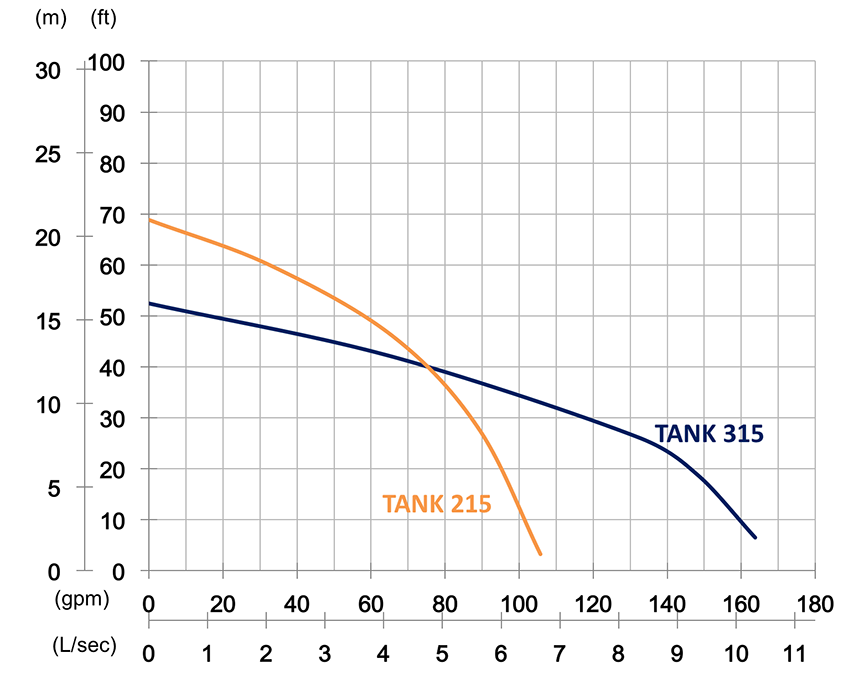

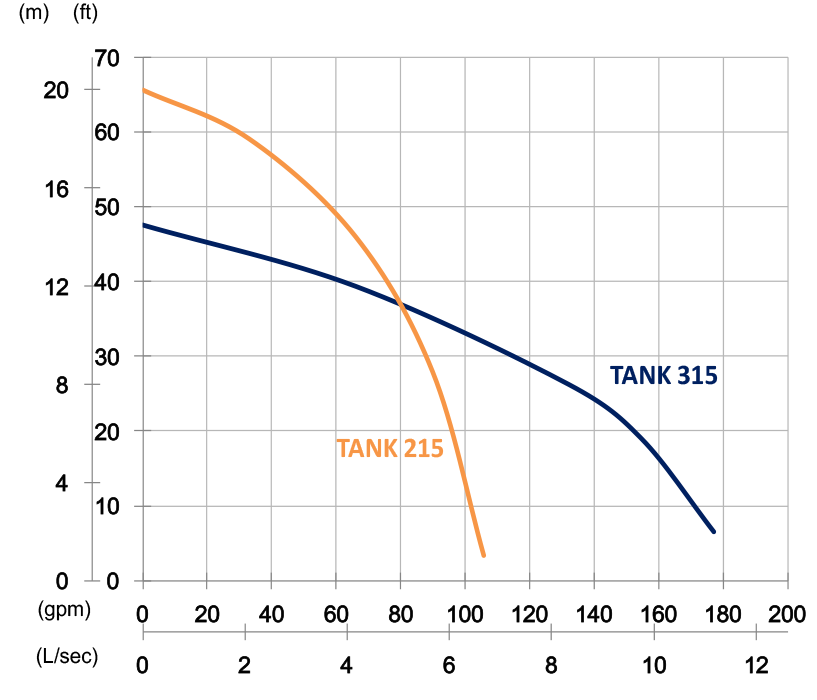

| 50HZ | 60HZ |
 |
 |
